Are Siemens And Eaton Breakers Interchangeable? Find Out Here!

Two well-known types of circuit breakers used in electrical systems are Siemens and Eaton. Although Eaton is a major worldwide technology corporation focusing on power management systems, Siemens is a German multinational corporation offering various electrical items.

Both brands offer circuit breakers of various types, like residual current breakers, micro breakers, and molded case breakers. Eaton breakers are built to be dependable and sturdy, but Siemens breakers are famous for their high-quality manufacturing and efficiency.

It’s crucial to consider your electrical system’s particular demands when picking a circuit breaker and to pick one that fits with your panelboard or load center. Traditional fuses are still used in most homes, but a critical safety device named a circuit breaker can replace them.

Circuit breakers primary job is identifying possible electrical system defects and shutting down the electricity to protect users. This article will discuss whether Siemens and Eaton’s breakers are interchangeable.

Are Siemens And Eaton Breakers Interchangeable?

Circuit breakers are available from various brands, notably Siemens and Eaton, and each has its design, set of standards, and rating system. Circuit breakers produced by various companies, including Siemens, have been tested and developed to be interchangeable with Eaton’s UL Classified breakers.

These breakers were created and validated by Eaton to be interchangeable. This shows that breakers manufactured by Siemens and Eaton can be interchanged. However, verifying the manufacturer’s instructions and requirements is crucial to help ensure that such UL Classified breaker can be fitted with the particular panelboard or load center used.

Constantly guarantee that you place breakers from the appropriate brand in your breaker panel. Although they may appear the same, only a handful of the circuit breakers on the market are interoperable.

The following are a few of the differences that can be noticed between Siemens and Eaton breakers:

Differences Between Siemens And Eaton Breakers

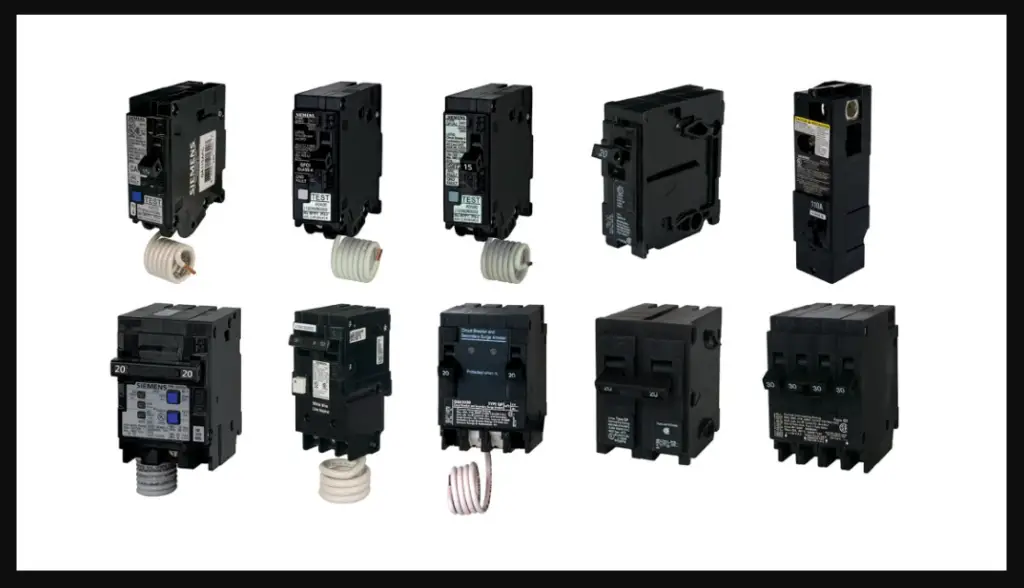

Siemens Breakers

• Crafted by a German multinational corporation in charge of manufacturing a large variety of electronic items.
• Recognized for its reliable build and excellent level of craftsmanship.
• Circuit breakers are accessible in an array of various sorts, including molded case circuit breakers, micro circuit breakers, and residual current circuit breakers.
• Utilized more often in business and manufacturing areas.

Eaton Breakers

• Designed by an international technology corporation that strives to offer products associated with power management.
• Created to endure for a long time and effectively perform.
• Circuit breakers can be found in various forms, such as molded case circuit breakers, micro circuit breakers, and air circuit breakers.
• Most frequently employed in both residential and commercial environments.
• Provides arc fault circuit interrupters (AFCIs) intended to raise the level of safety existing in domestic electrical systems.
• UL Classified breakers are designed and validated to be interchangeable with circuit breakers produced by many distinct companies, such as Square D, Crouse-Hinds, Murray, Siemens, Thomas & Betts, and General Electric. These breakers have been certified for use in UL requirements.

Are Siemens And Eaton Breakers Compatible?

Breakers produced by Eaton have been constructed and verified to ensure they’re compatible with breakers supplied by several other brands, like Siemens. Eaton also provides UL Classified breakers.

Nevertheless, these are merely designed to serve as immediate replacements in particular panelboards or load centers, and not every Eaton breakers are UL Classified to be appropriate for use in electrical systems.

 Since the two brands usually possess a distinct set of distinctive features and features, integrating parts from distinct brand names, such as a circuit breaker from one brand and a panelboard or load center from a different brand, could cause compatibility, efficiency, etc., and security.

What Are Siemens Breakers Compatible With?

The primary “compatible ” plug-on kind breakers used during load centers are the Siemens QP, QT, QAF, and QPF. These breakers are developed by Siemens and thus are offered under various big brands, the most popular among which are Siemens, Murray, Gould, and Sylvania.

Furthermore, it is compatible with most metering devices made by Midwest Power and Milbank Mfg. UL-classified breakers, notably those supplied by Eaton, are compatible with breakers produced by Siemens.

What Are Eaton Breakers Compatible With?

Breakers made by Eaton are compatible only with the company’s panelboards and load centers. They are created, researched, and evaluated to be compatible with Eaton machinery in hopes of ensuring a good connection, appropriate effectiveness, and suitable levels of safety.

Eaton additionally provides an array of circuit breakers that are UL Classified. These breakers have been developed and verified to be compatible with the circuit breakers supplied by many other brands, such as Murray, Siemens, Square D, etc.

However, it is vital to remember that these UL Classified breakers are just meant to be employed as straightforward replacements in particular panelboards or load centers, so not all Eaton breakers have become UL Classified. This limitation applies when employing these breakers in any panelboard or load center.

When you pair a circuit breaker from another company with an Eaton panelboard or load center, there is a chance that compliance concerns, process failures, and safety hazards will develop.

While choosing and putting circuit breakers, always checking the company’s standards and setup guidelines is essential. Doing so will verify that the breakers are compatible with each other and will keep you safe.

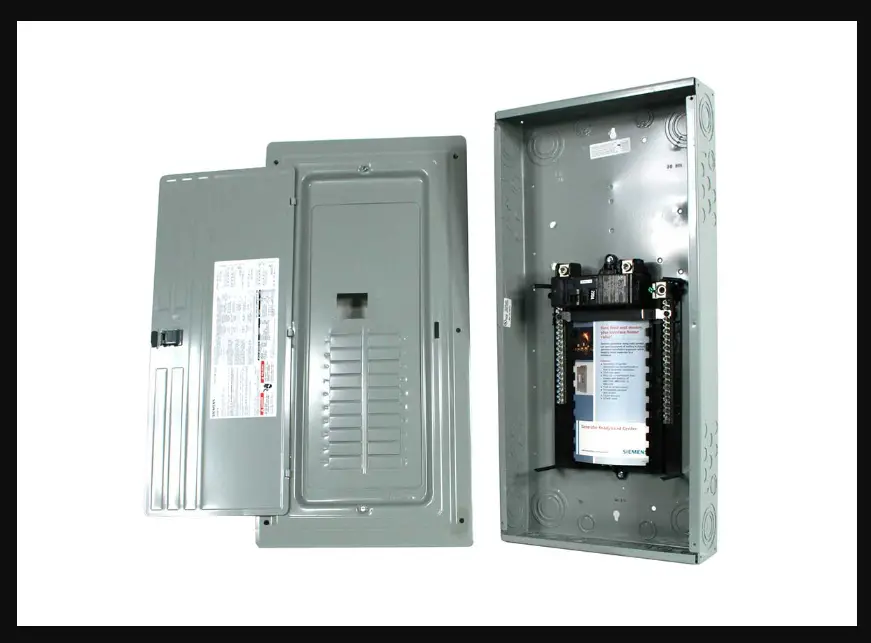

How To Determine Which Breakers Fit Siemens Panels

You will need to check the UL compatibility chart placed within your breaker box to find the circuit breakers that are appropriate for your Siemens panel. This chart includes a listing of all of the circuit breakers suitable for your panel and any electrical wiring or guidelines for the setup that may be needed.

In addition to examining the compatibility chart in your panel, you can review other internet resources, like the databases and sites of valuable companies. When trying to identify circuit breakers suitable for your Siemens electrical panel, these internet resources can be beneficial because they usually include specific models suitable with particular panels.

Carefully read the compatibility chart and any other internet sources before buying an extra breaker for your Siemens panel. This will guarantee that you select a breaker suitable for the panel. In addition, feel free to connect with an electrician in your area to get professional help and direction on picking the proper circuit breakers for your Siemens panel.

Situations In Which Siemens Or Eaton Breakers May Be Preferable

In addition to the demands of the electrical system, the particular use is the primary factor that should lead your selection among Siemens and Eaton breakers. Below are a few instances of circumstances in which one brand of circuit breaker could be better than another:

Below are some instances in which Siemens breakers could be beneficial:

• When the electrical system, such as the panelboards, load centers, and other devices, is created and built with Siemens elements.
• When the unique electrical system demands can be fulfilled most efficiently by the capabilities of a Siemens circuit breaker, including more excellent interrupting rates, flexible trip settings, and compatibility with Siemens communications and monitoring tools.
• When the application asks for a special series of Siemens circuit breakers that other manufacturers don’t, Siemens will supply it.
• When the application needs a breaker with a unique characteristic solely offered by Siemens, like the combination arc fault and ground fault safety, Siemens breakers are the sole ones that can fulfill those demands.

In the following cases, Eaton breakers might be the superior option:

• When the entire system, such as the panelboards, load centers, and other gear, is created and manufactured with Eaton parts.
• When the particular demands of the electrical system can be pleased most efficiently by the qualities of an Eaton circuit breaker, including such suitability with particular Eaton communication and monitoring devices and the accessibility of UL-classified breakers that are comparable with circuit breakers produced by other manufacturers.
• When the application demands a particular kind or series of Eaton breakers that other brands don’t provide, Eaton is the brand that will be used.
• Whenever the application demands a breaker with a distinctive feature exclusively offered by Eaton, including a series-rated combination starter, Eaton breakers constitute the sole ones that can fulfill those demands.

The decision among Siemens and Eaton breakers must be made after carefully considering the possible choices and conversing with a professional electrician or engineer. Eventually, the decision between Siemens and Eaton breakers is determined by the specific demands and specifications of the electrical system.

Conclusion

Siemens and Eaton are two famous brands of circuit breakers, and both manufacturers provide a broad range of varieties of breakers that are appropriate for a variety of diverse applications. UL Classified breakers of Siemens and Eaton have been developed and proven to be interchangeable with each other and breakers from several other manufacturers.

This is the way despite the reality that both companies manufacture items that are unique from one another. Yet, it is essential to check the instructions and specifications offered by the manufacturer to confirm that the circuit breaker can be installed with the panelboard or load center employed.

 It is vital to constantly utilize breakers from the proper manufacturer in your breaker panel and to obey the regulations and installation directions offered by the manufacturer to ensure functionality and protection.

In closing, the question regarding Siemens and Eaton breakers are interchangeable. Breakers manufactured by Siemens and Eaton are interchangeable; nevertheless, confirming their compatibility with your electrical system is essential before using either manufacturer.
